Question 4

Contents

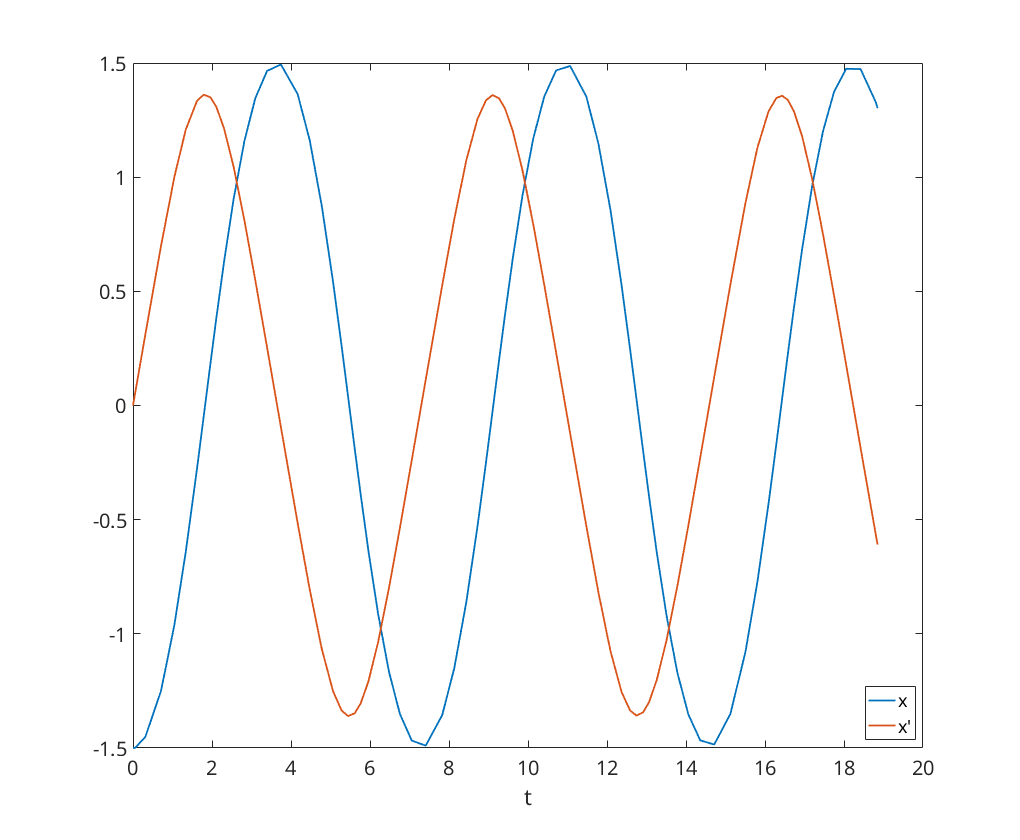

$x_0 = (-1.5, 0)^\top$

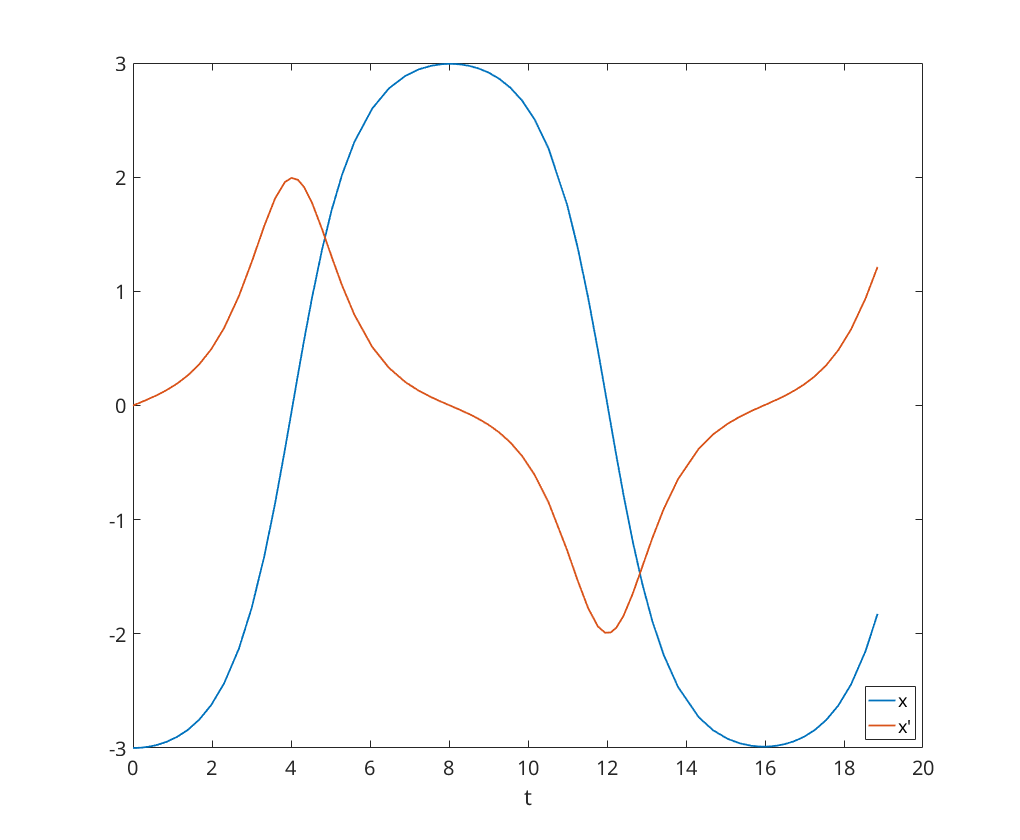

$x_0 = (-3, 0)^\top$

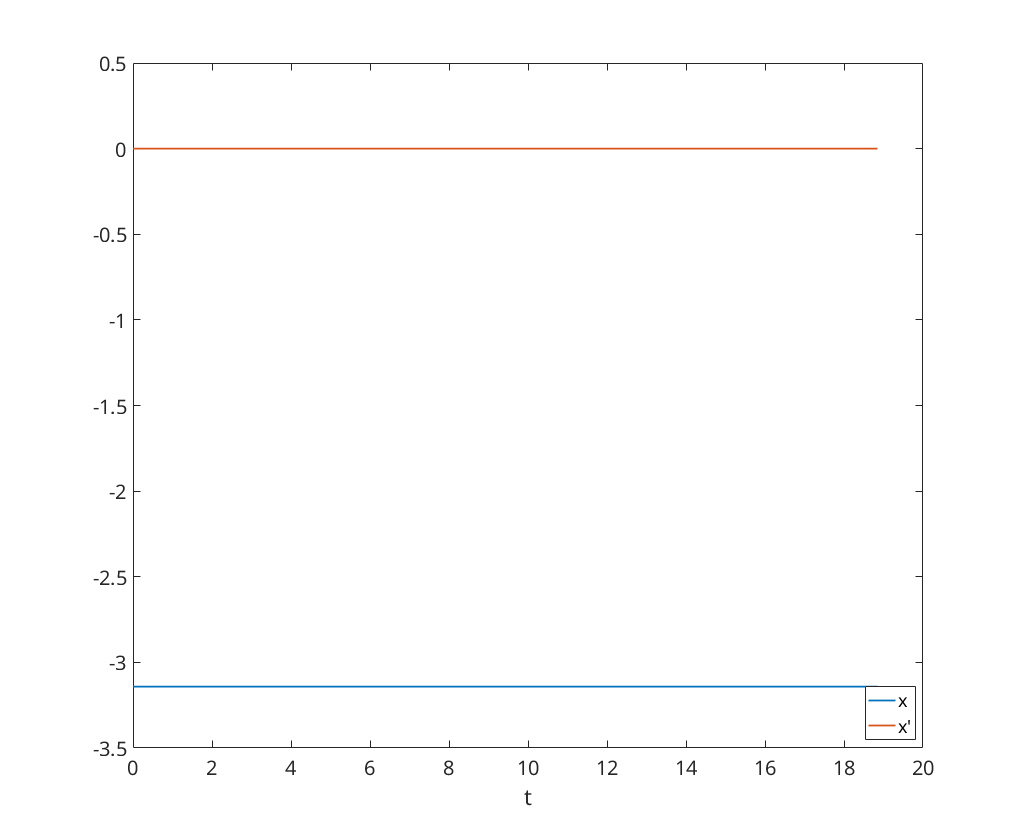

$x_0 = (-\pi, 0)^\top$

$x_0 = (-1.5, 0)^\top$

[t,x] = ode23(@pendulum, [0,6*pi], [-1.5, 0]);
figure;
plot(t,x(:,1),'DisplayName','x');
hold on;
plot(t,x(:,2),'DisplayName','x''');
xlabel('t');
legend('Location','SouthEast');

$x_0 = (-3, 0)^\top$

[t,x] = ode23(@pendulum, [0,6*pi], [-3, 0]);
figure;
plot(t,x(:,1),'DisplayName','x');
hold on;
plot(t,x(:,2),'DisplayName','x''');
xlabel('t');
legend('Location','SouthEast');

$x_0 = (-\pi, 0)^\top$

[t,x] = ode23(@pendulum, [0,6*pi], [-pi, 0]);
figure;
plot(t,x(:,1),'DisplayName','x');
hold on;
plot(t,x(:,2),'DisplayName','x''');
xlabel('t');
legend('Location','SouthEast');
